Shield Embassy Series
Shield Embassy FE5
Starting at $10,000
Customized Security

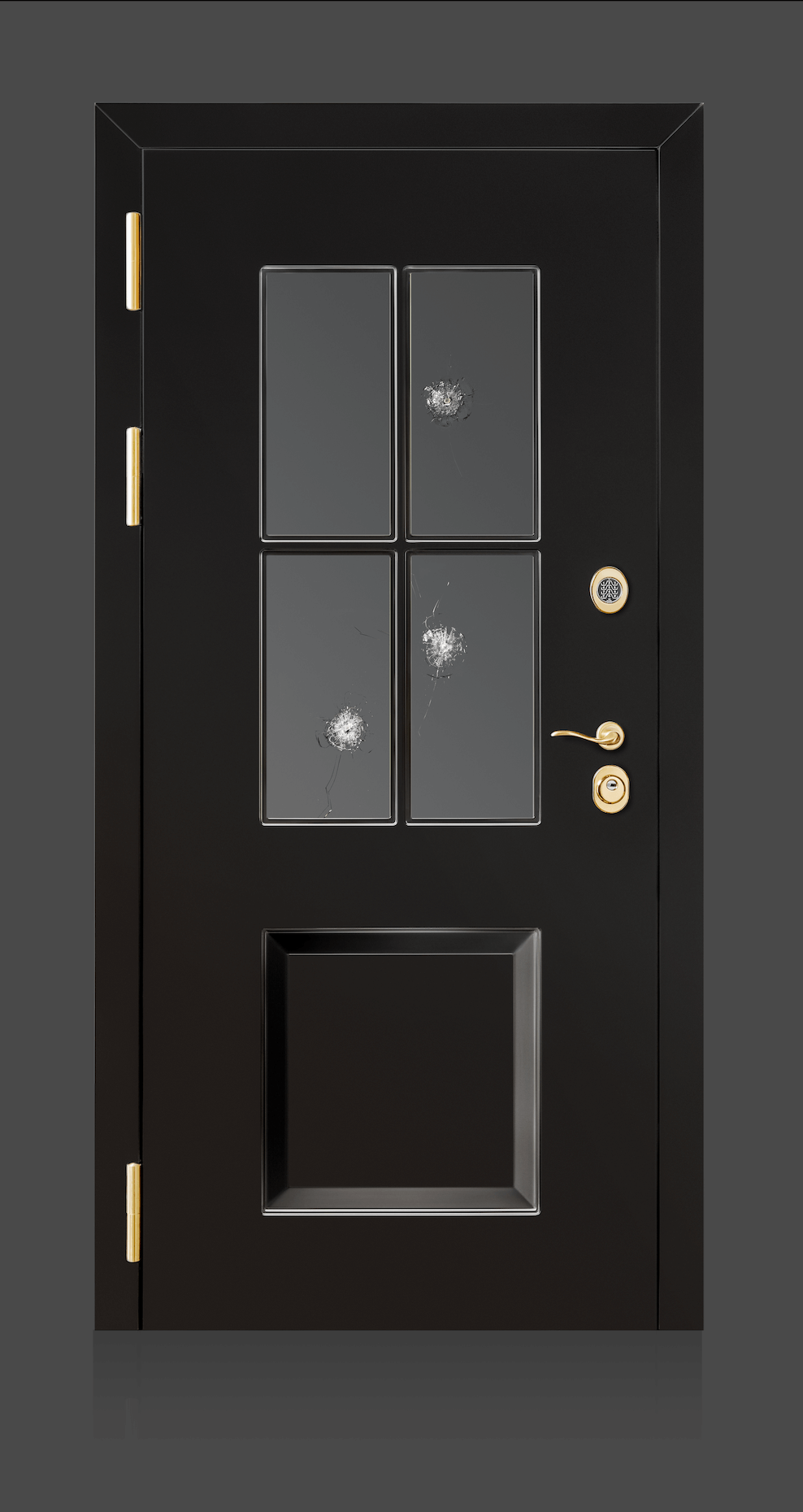

The Shield Embassy Series is forced entry resistant and designed to withstand entry from highly skilled attackers using heavy-duty tools such as sledge hammers, crow bars, wrenches, and wedges. It was tested at NTS Chesapeake in Belcamp, MD and Intertek in York, PA to the US State Department (DoS) forced entry standard at the 5 minute level (FE 5) and at the iFT Rosenheim laboratory in Germany and was awarded a Security Class 3 (RC 3) rating according to European standard EN1627. The Embassy Series was also tested for bullet resistance to UL752 level 3 and NIJ level IIIA, and European standard EN1522 level FB4. The door is suitable for private houses, apartments and commercial buildings.
Our highly specialized manufacturing process makes us the best choice for door restoration and reproduction projects. We design our doors for both interior and exterior applications in residential and commercial properties. We can easily match the design of other doors on your property to ensure that the only person who knows about your security door or window is…you.
You don’t compromise on style; we never compromise on security. It’s military-grade security at your door.
About the Shield Embassy Series High-Security Door
Our most popular door, the Embassy Series door is designed for private homes, apartments, and commercial buildings with an increased need for high security and an elevated threat profile. It protects against forced entry from heavy-duty tools such as sledgehammers, crowbars, wrenches, and wedges, providing excellent protection against burglary or forced entry, and is ideally suited for a safe room or panic room.
Embassy Series FE5
The Embassy Series is designed to help create a secure environment for locations with elevated threat profiles or security challenges, providing protection against burglary or forced entry. Its 3-inch thick door leaf and unique security features are the result of years of research, development, and testing against a wide variety of burglary methods. Additionally, the door was tested for internal and external penetration to ensure that it is as secure from the inside as from the outside.

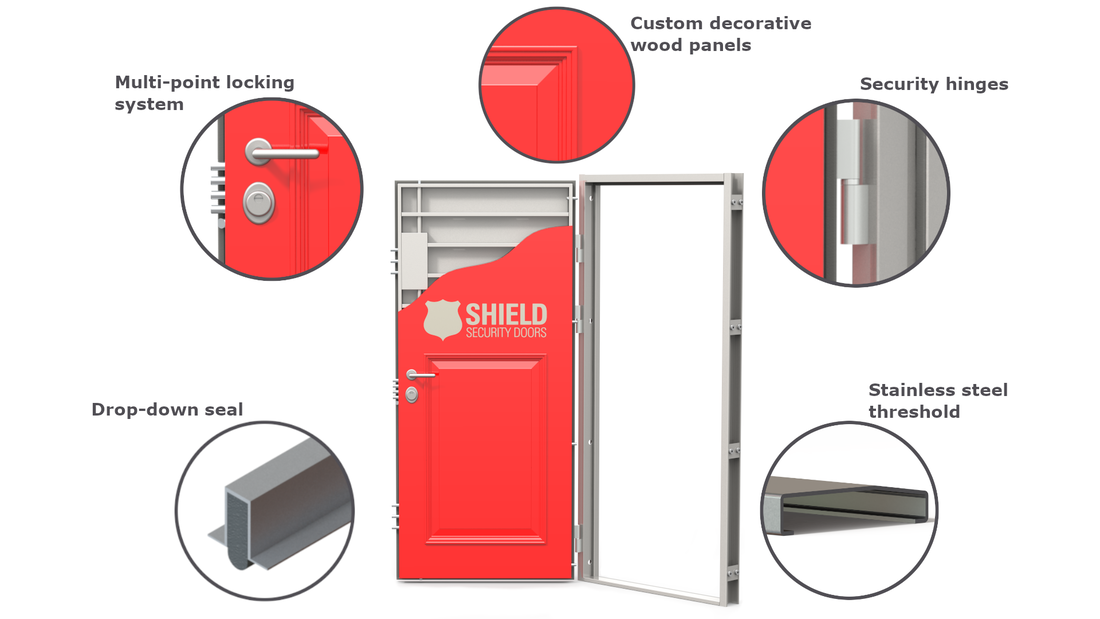

The Features of the Embassy Series High-Security Door
The Embassy Series comes with the following features:

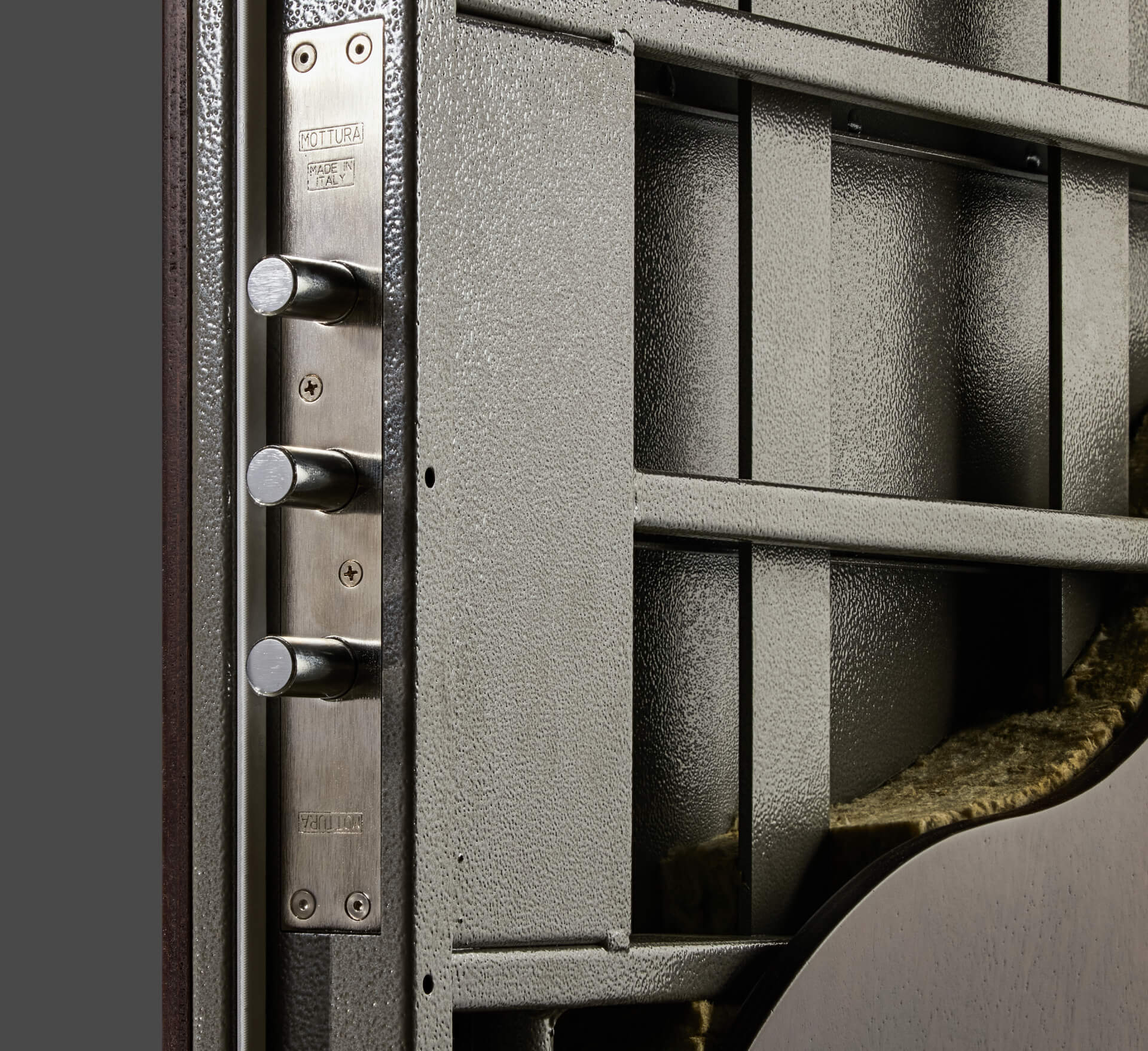

- Armored multi-point locking system encased in drill-resistant manganese.
- Optional motorized lock with a biometric fingerprint scanner, keypad, card reader, or integration with a 3rd party access control system.
- High-security Mul-T-Lock keys and cylinders.
- Adjustable security hinges that make even the heaviest doors easy and comfortable to operate.
- 3” thick door and 4” wide frame.
- 2” thick layer of rockwool and double gasketing for outstanding sound and heat insulation.
- A virtually unlimited range of architectural designs, natural hardwood or engineered wood door skins, raised panels, millings, glazings, and colors that allow us to create highly secure and beautiful doors.
Mul-T-Lock Cylinders
Mul-T-Lock’s MT5+ cylinders are a natural fit in our doors. Mul-T-Lock keys cannot be copied and even the installer’s green key is automatically deactivated when the home owner starts using the yellow key. A master red key deactivates all others if any yellow keys are lost or stolen, providing the ultimate in security and key control.
FIAM X1R Electromechanical Lock
The Fiam X1R electromechanical locking system is the most sophisticated and secure electronic lock on the market. Locking in three directions with up to 20 bolts, the X1R can be integrated with keypads, biometrics, card readers, or any other access control system. Never again will you ask yourself “did I lock the door?” because the X1R ensures that your door is always secured.
Mottura 85/87 Series Mechanical Lock
The Mottura 85 and 87 series armored mechanical multi-point locks are the most robust and durable mechanical locking solutions in the world. They secure the door in three directions with up to 20 bolts and have a unique patented design that protects the key cylinder from attack.
ekey Biometric scanner
Fingerprint scanners offer the ultimate in biometric security. They are convenient, affordable, safe, and reliable. The scanner analyses each fingerprint swipe to provide a unique thermal signature and a special code to open the door. Up to 99 different fingerprints can be stored, and adding or removing authorised fingerprints is easy.
Embassy Series FE5

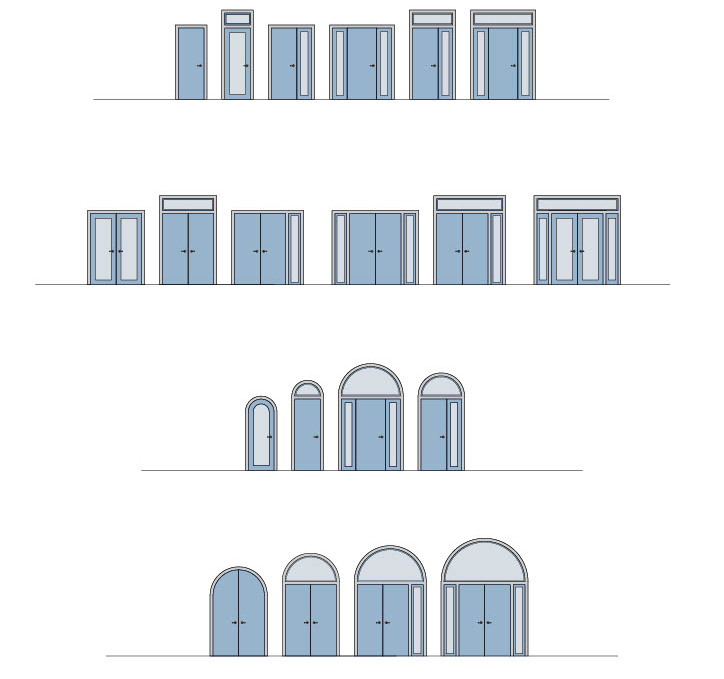

KEY DETAIL OPTIONS

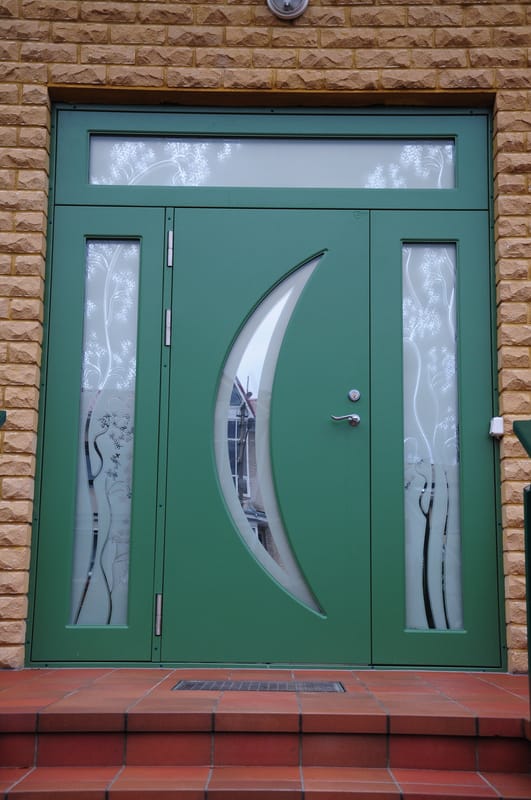

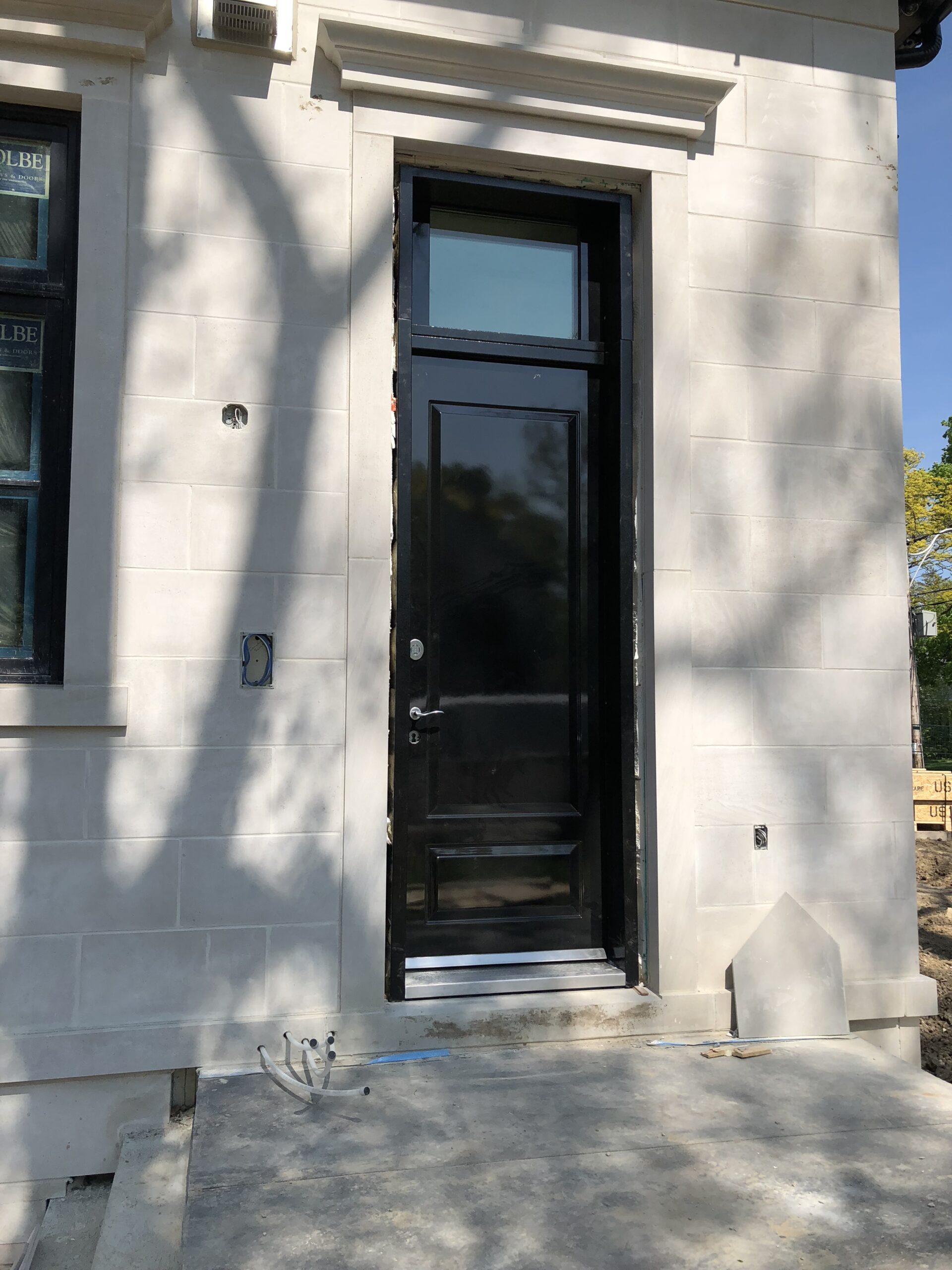

- Transom: non-operable window above a door

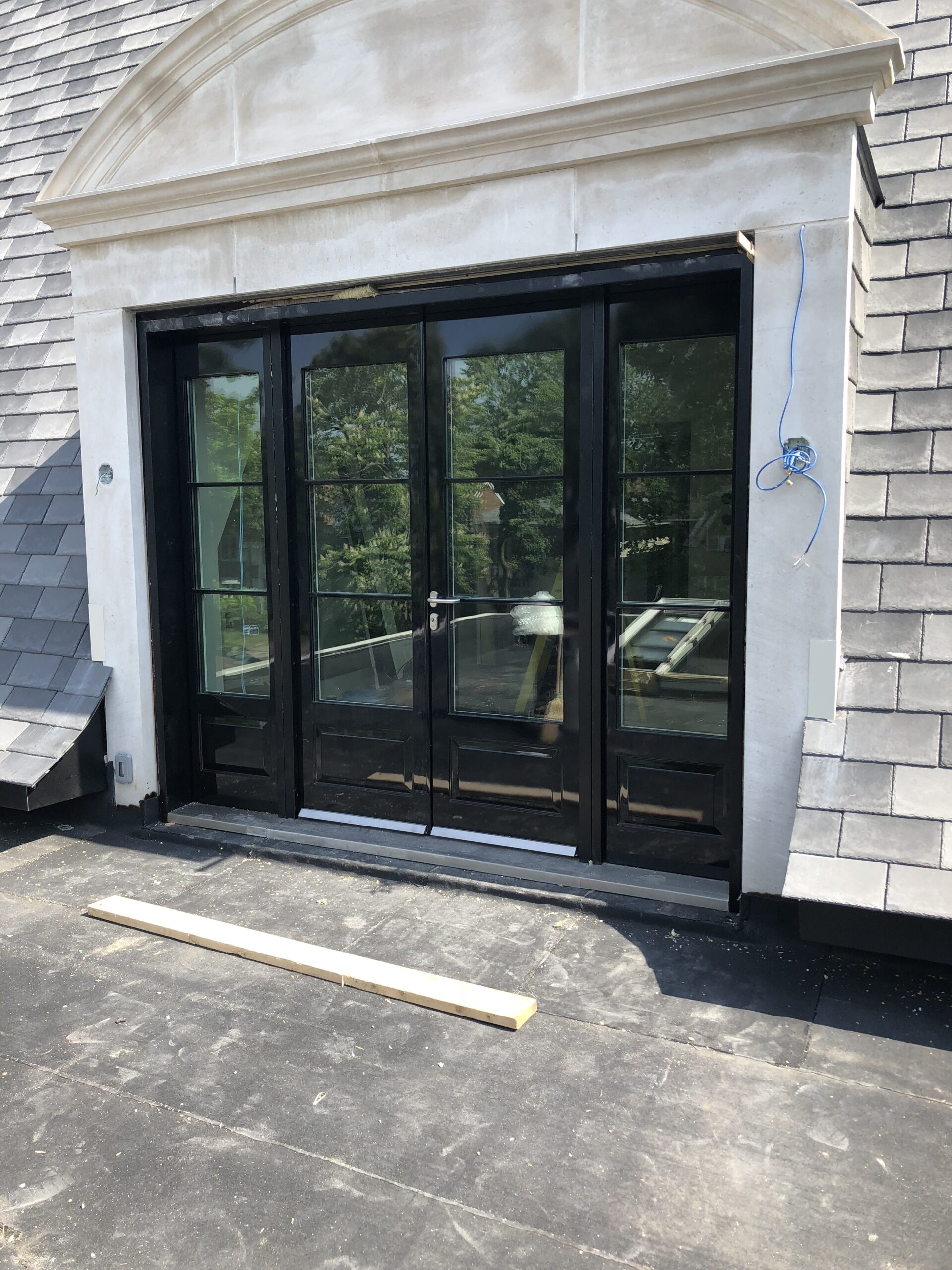

- Sidelite: non-operable window beside a door
- Arched door: door curved at the top
- Arched transom: curved window above a door
Embassy Series FE5

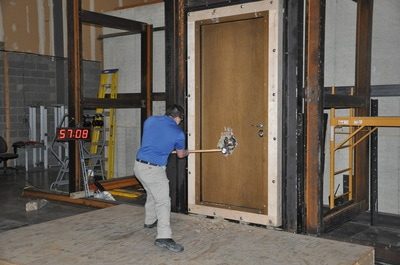

How We Test Our Doors

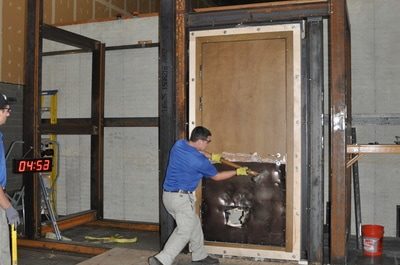

- 30 man-minutes of attack time

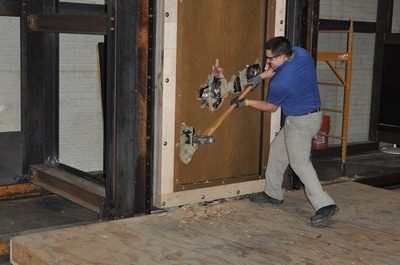

- Two man team spends 5 minutes attacking the center of the door, 5 minutes on the lock side, and 5 minutes on the hinge side.
- Extensive list of tools used, including sledgehammers, crowbars, battering ram, and wedges

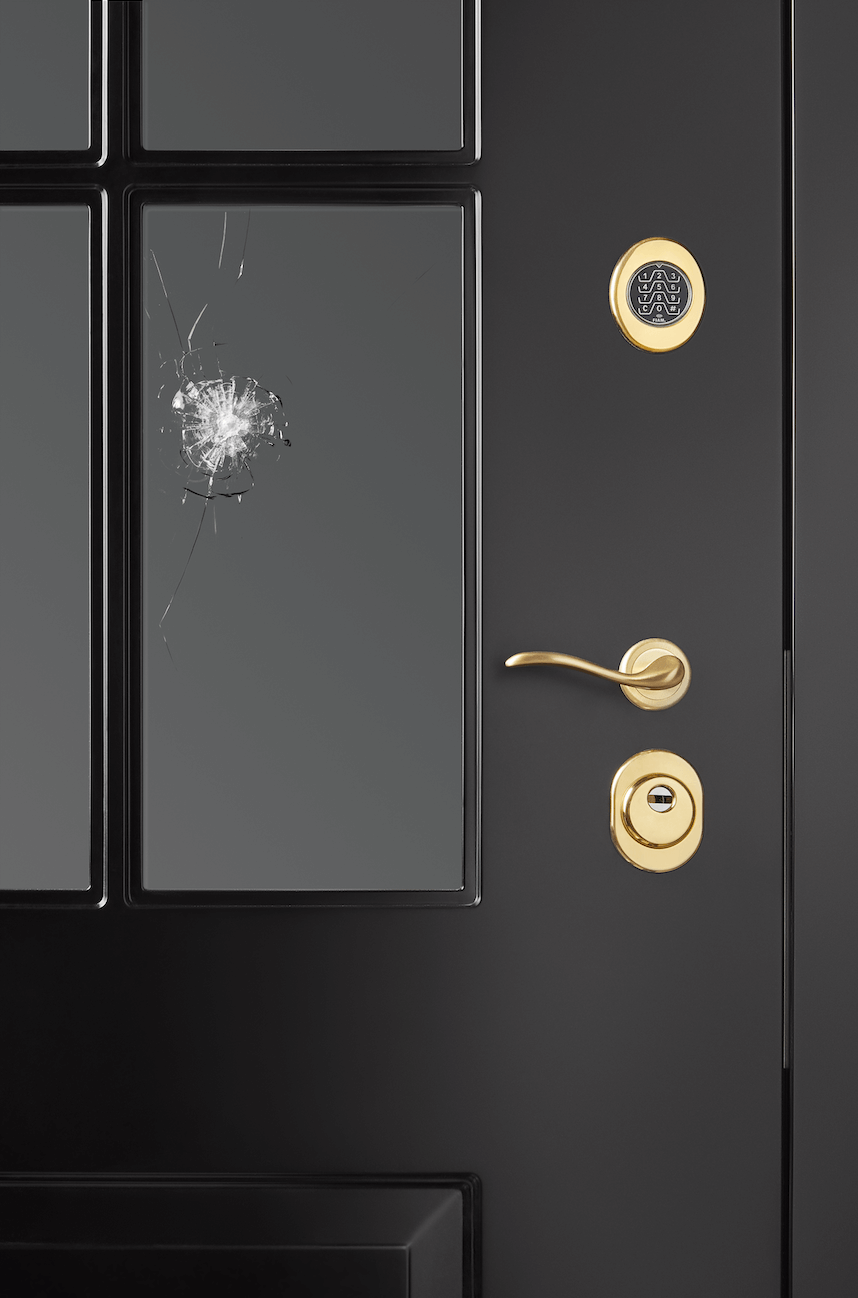

- UL752 level 3 bullet resistant (optional)
Additional Testing Details
Its 3-inch thick door leaf and unique security features are the result of years of research, development, and testing against a wide variety of burglary methods. Additionally, the door was tested for internal and external penetration to ensure that it is as secure from the inside as from the outside.
The Shield Embassy Series was tested at NTS Chesapeake in Belcamp, MD, and Intertek in York, PA, to the US State Department (DoS) forced entry standard and ASTM F3038-14 at the 5-minute level (FE 5) and at the Kaunas University of Technology, achieving a resistance class 3 (RC 3) rating under EN1627. This certifies that the Shield Fortress Series can withstand entry from highly skilled attackers using heavy-duty tools such as crowbars, sledgehammers, axes, and wedges. The Embassy Series was also tested for bullet resistance to UL752 levels 3, NIJ levels III, and European standard EN1522 levels FB4. The door is suitable for government offices, commercial buildings, private homes, and apartments.
Door Ratings Matter
What level of protection does the Embassy Series offer?

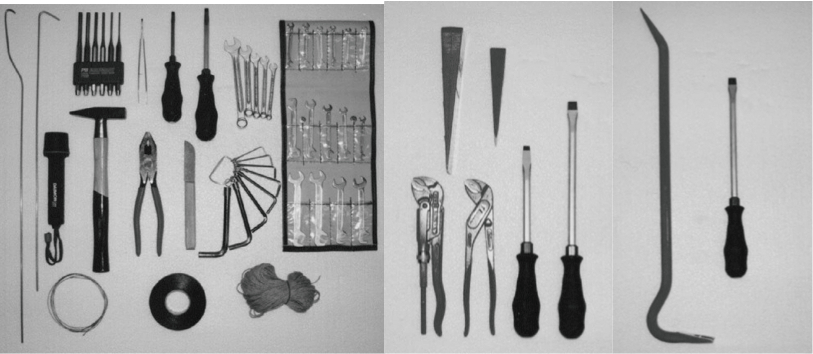

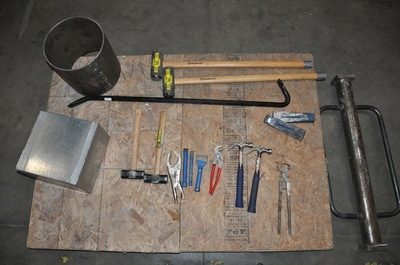

Shield Embassy Testing Tools
Tools used to test doors to burglary resistance class 3 (WK3) by EN-1627
